The Next Generation: Fagor KARE Series
Innovation That Cares for Your Business and the Environment.
Washers
A solution for every customer
High Spin Washing Machines
The Fagor Professional High-Spin Washer-Extractors are engineered for facilities where excellence and efficiency are non-negotiable. By delivering a powerful 350 to 450 G-Force, these machines drastically minimize residual moisture, significantly cutting down on drying and ironing times.
| High Spin (LA Series) | LA-11 / 14 TP2 |
LA-18 / 22 TP2 |
LA-28 TP2 |
LA-35C / 45C TP2 |
LA-60C / 80C TP2 |
LA-100C / 120C TP2 |
|---|---|---|---|---|---|---|
| Load Capacity (kg) | 11 - 14 kg | 18 - 22 kg | 28 kg | 35 - 45 kg | 60 - 80 kg | 100 - 120 kg |
| G-Factor Performance | 500 G | 450 - 500 G | 450 G | 450 G | 400 G | 400 G |
| Drum Volume (dm³) | 100 - 130 | 180 - 210 | 250 | 350 - 450 | 600 - 800 | 1000 - 1200 |
| Control Display | 4.3" Touch Plus 2 | 4.3" / 7" Touch Plus 2 | 7" Touch Plus 2 | 7" Touch Plus 2 | 7" Touch Plus 2 | 7" Touch Plus 2 |
| Heating Power (kW) | 6 - 9 kW | 12 - 18 kW | 18 kW | 21 - 28 kW | Steam Only | Steam Only |
| Width (mm) | 719 mm | 788 - 884 mm | 979 mm | 1095 mm | 1478 mm | 1710 mm |
| Depth (mm) | 830 - 911 mm | 915 - 1003 mm | 1041 mm | 1184 - 1358 mm | 1444 - 1634 mm | 1662 - 1862 mm |
| High Spin (LA Series) | LA-11 / 14 TP2 |
LA-18 / 22 TP2 |
LA-28 TP2 |
LA-35C / 45C TP2 |
LA-60C / 80C TP2 |
LA-100C / 120C TP2 |
|---|---|---|---|---|---|---|
| Load Capacity (kg) | 11 - 14 kg | 18 - 22 kg | 28 kg | 35 - 45 kg | 60 - 80 kg | 100 - 120 kg |
| G-Factor Performance | 500 G | 450 - 500 G | 450 G | 450 G | 400 G | 400 G |
| Drum Volume (dm³) | 100 - 130 | 180 - 210 | 250 | 350 - 450 | 600 - 800 | 1000 - 1200 |
| Control Display | 4.3" Touch Plus 2 | 4.3" / 7" Touch Plus 2 | 7" Touch Plus 2 | 7" Touch Plus 2 | 7" Touch Plus 2 | 7" Touch Plus 2 |
| Heating Power (kW) | 6 - 9 kW | 12 - 18 kW | 18 kW | 21 - 28 kW | Steam Only | Steam Only |
| Width (mm) | 719 mm | 788 - 884 mm | 979 mm | 1095 mm | 1478 mm | 1710 mm |
| Depth (mm) | 830 - 911 mm | 915 - 1003 mm | 1041 mm | 1184 - 1358 mm | 1444 - 1634 mm | 1662 - 1862 mm |
Read more about the characteristcs of each model
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis…thanks to the IoT.
- Videos on display (ads, instructions, etc.).
- 37 languages.
- 8 dosing signals as standard8 dosing.
G FACTOR
- High G-Factor of 200
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Low water consumption.
VERSATILITY
- Make to order: customisation.
- OPL < > COIN.
- Electric < > Hot water.
- Wet cleaning features
CONNECTIVITY
- IoT - FagorKonnect.
- Remote technical service.
- Managemant of laundries: OPL and selfservice.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø373.
- Easy opening/closing system for door lock.
MAINTENANCE
- Hinged control panel: easy and ergonomic access.
- Equivalent parts for all models: contactors, electronic devices,...
- Technical menu: telemetry, error diagnosis.
OTHERS
- Hard mounted washers.
- Anchoring to floor with anchoring base.
- Panels in skinplate.
- Drum and tub in stainless steel AISI 304
- 3 water inlets.
- CB and WRAS approved product Option ETL.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- SLUICE: model with 8mm drum holes.
- Anchoring base.
- External double drain 3”.
- Normally closed valve.
- Water FULL FLOW: recirculation of bath water.
- Relay card with 6 extra dosing signals: up to 14 signals.
- Silicone gasket.
- Reversible door opening.
- Tropicalized model: protected board.
- Steam kit to transform an E or HW heated machine into steam version.
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 front panel.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
- Coin / token kit.
- Auto unlock kit for the door.
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis…thanks to the IoT.
- Videos on display (ads, instructions, etc.).
- 37 languages.
- 8 dosing signals as standard
G FACTOR
- High G-Factor: G-FACTOR 450-500
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS.
- Low water consumption.
VERSATILITY
- Make to order: customisation.
- OPL < > COIN.
- Electric < > Hot water.
- Wet cleaning features
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø460.
- Easy opening/closing system for door lock.
MAINTENANCE
- Hinged control panel: easy and ergonomic access.
- Technical menu: statistics for technicians and maintenance with external console (with console option).
OTHERS
- Grey skinplate outer casing.
- Drum and tub in stainless steel AISI 304.
- Detergent dispenser with 4 compartments.
- Electronic control of imbalance with frequency control.
- LOADING AID system: water and rotation control.
- CB and WRAS approved product. Option ETL.
- High spin washers with suspended drum.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- Double drain.
- Normally closed valve.
- WaterFULL FLOW recirculation of bath water.
- Levelling feet.
- Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Silicone gasket.
- Reversible door opening.
- Tropicalized model: protected board.
- Steam kit to transform an E or HW heated machine into steam version.
- Plinth to level all machines from top.
- Plinth to align the doorbase at 850mm).
- Plinth for mops with drawer inox/ skinplate.
- Stainless steel outer casing.
- Stainless steel front panel.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
- Coin/token kit.
- Auto unlock kit for the door.
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis…thanks to the IoT.
- Videos on display (ads, instructions, etc.).
- 37 languages.
- 8 dosing signals as standard
G FACTOR
- High G-Factor: G-FACTOR 450-500
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS.
- Low water consumption.
VERSATILITY
- Make to order: customisation.
- OPL < > COIN.
- Electric < > Hot water.
- Drain valve < > Pump.
- Wet cleaning features.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø460.
- Easy opening/closing system for door lock
MAINTENANCE
- Hinged control panel: easy and ergonomic access.
- Technical menu: statistics for technicians and maintenance with external console (with console option).
OTHERS
- Grey skinplate outer casing.
- Drum and tub in stainless steel AISI 304.
- Detergent dispenser with 4 compartments.
- Electronic control of imbalance with frequency control.
- LOADING AID system: water and rotation control.
- CB and WRAS approved product. Option ETL.
- High spin washers with suspended drum.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- Double drain.
- Normally closed valve.
- WaterFULL FLOW recirculation of bath water.
- Levelling feet.
- Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Silicone gasket.
- Reversible door opening.
- Tropicalized model: protected board.
- Steam kit to transform an E or HW heated machine into steam version.
- Plinth to level all machines from top.
- Plinth to align the doorbase at 850mm).
- Plinth for mops with drawer inox/ skinplate.
- Stainless steel outer casing.
- Stainless steel front panel.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
- Coin/token kit.
- Auto unlock kit for the door.
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis… thanks to the IoT.
- Videos on display (ads, instructions).
- 37 languages.
- 8 dosing signals as standard.
G FACTOR
- High G-Factor: G-FACTOR 450.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS.
- Low water consumption
VERSATILITY
- Make to order: customisation.
- OPL < > COIN.
- Electric < > Hot water.
- Drain valve < > Pump.
- Wet cleaning features.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø560.
- Easy opening/closing system for door lock
MAINTENANCE
- Hinged control panel: easy and ergonomic access.
- Technical menu: statistics for technicians and maintenance with external console (with console option).
OTHERS
- Grey skinplate outer casing.
- Drum and tub in stainless steel AISI 304.
- Detergent dispenser with 4 compartments.
- Electronic control of imbalance with frequency control.
- LOADING AID system: water and rotation control.
- CB and WRAS approved product. Option ETL.
- High spin washers with suspended drum.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- Double drain.
- Normally closed valve.
- Water FULL FLOW: recirculation of bath water.
- Levelling feet.
- Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Reversible door opening.
- Tropicalized model: protected board.
- Steam kit to transform an E or HW heated machine into steam version.
- Plinth to align loading height (door base at 850mm).
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 front panel (LA35C).
- Maritime voltage for electric models: 440V III 50/60 Hz.
- No neutral.
- Voltage 230 V III 50/60 Hz.
- Coin/token kit.
- Auto unlock kit for the door.
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis… thanks to the IoT.
- Videos on display (ads, instructions).
- 37 languages.
- 8 dosing signals as standard.
G FACTOR
- High G-Factor: G-FACTOR 450.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Low water consumption
VERSATILITY
- Electric < > Hot water.
- Wet cleaning features as standard.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
ERGONOMICS
- Biggest door diameters: Ø560.
- Easy opening/closing system for door lock
MAINTENANCE
- Equivalent parts for all models: contactors, electronic devices, gear.
- Technical menu: traceability, error diagnosis.
OTHERS
- Drum and tub in stainless steel AISI 304.
- 3 water inlets.
- Soft mounted, free standing washers.
- Panels in skinplate.
- Easy to install, no need of fixation to the floor.
- CB and WRAS approved product. Option ETL.
- High spin washers with suspended drum.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- Double drain.
- Tropicalized model: protected board.
- Tilting options: frontal or double tilt.
- Auto Weight: automatic weighing sensor system on feet (Not available with tilting kits).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Stainless steel AISI 304 outer casing.
- Double heating E+S.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis… thanks to the IoT.
- Videos on display (ads, instructions).
- 37 languages.
- 8 dosing signals as standard.
G FACTOR
- High G-Factor: G-FACTOR 350.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS.
- Low water consumption
VERSATILITY
- Electric < > Hot water.
- Wet cleaning features.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø700.
- Easy opening/closing system for door lock
MAINTENANCE
- Equivalent parts for all models: contactors, electronic devices, gear.
- Technical menu: traceability, error diagnosis.
OTHERS
- Drum and tub in stainless steel AISI 304.
- 3 water inlets.
- Air inlet.
- Soft mounted, free standing washers.
- Panels in skinplate.
- Easy to install, no need of fixation to the floor.
- CB and WRAS approved product. Option ETL.
- High spin washers with suspended drum.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- Double drain.
- Tropicalized model: protected board.
- Tilting options: frontal or double tilt.
- Auto Weight: automatic weighing sensor system on feet (Not available with tilting kits).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Stainless steel AISI 304 outer casing.
- Double heating E+S.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
High Spin Washing Machines
Built for heavy-duty work. These machines are perfect for healthcare and nursing homes, are simple to use and very reliable. They feature a special rinse system and extra-wide drains to handle heavily soiled laundry without clogging. It is the ideal choice if you need industrial power and high hygiene in an easy-to-manage package.
| Normal Spin (LN Series) | LN-11 / 14 TP2 |
LN-18 / 25 TP2 |
LN-35C TP2 |
LN-45C / 60C TP2 |
LN-80C TP2 |
LN-100 / 120 TP2 |
|---|---|---|---|---|---|---|
| Load Capacity (kg) | 11 - 14 kg | 18 - 25 kg | 35 kg | 45 - 60 kg | 80 kg | 100 - 120 kg |
| G-Factor | 150 G | 150 G | 150 G | 150 G | 150 G | 150 G |
| Drum Volume (dm³) | 100 - 130 | 180 - 250 | 350 | 450 - 600 | 800 | 1000 - 1200 |
| Max. Speed (RPM) | 659 | 583 | 505 | 447 - 505 | 447 | 447 |
| Heating Power (kW) | 6 - 9 kW | 12 - 18 kW | 21 kW | 28 kW / Steam | Steam Only | Steam Only |
| Dimensions (W x D) | 719 x 684/830 mm | 788/884 x 840/1011 mm | 1095 x 1034 mm | 1095/1478 x 1184/1444 mm | 1478 x 1634 mm | 1710 x 1662/1862 mm |
| Net Weight (kg) | 212 - 231 kg | 325 - 410 kg | 542 kg | 654 - 1050 kg | 1150 kg | 1450 - 1650 kg |
| Normal Spin (LN Series) | LN-11 / 14 TP2 |
LN-18 / 25 TP2 |
LN-35C TP2 |
LN-45C / 60C TP2 |
LN-80C TP2 |
LN-100 / 120 TP2 |
|---|---|---|---|---|---|---|
| Load Capacity (kg) | 11 - 14 kg | 18 - 25 kg | 35 kg | 45 - 60 kg | 80 kg | 100 - 120 kg |
| G-Factor | 150 G | 150 G | 150 G | 150 G | 150 G | 150 G |
| Drum Volume (dm³) | 100 - 130 | 180 - 250 | 350 | 450 - 600 | 800 | 1000 - 1200 |
| Max. Speed (RPM) | 659 | 583 | 505 | 447 - 505 | 447 | 447 |
| Heating Power (kW) | 6 - 9 kW | 12 - 18 kW | 21 kW | 28 kW / Steam | Steam Only | Steam Only |
| Dimensions (W x D) | 719 x 684/830 mm | 788/884 x 840/1011 mm | 1095 x 1034 mm | 1095/1478 x 1184/1444 mm | 1478 x 1634 mm | 1710 x 1662/1862 mm |
| Net Weight (kg) | 212 - 231 kg | 325 - 410 kg | 542 kg | 654 - 1050 kg | 1150 kg | 1450 - 1650 kg |
Read more about the characteristcs of each model
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis…thanks to the IoT.
- Videos on display (ads, instructions, etc.).
- 37 languages.
- 8 dosing signals as standard8 dosing.
G FACTOR
- High G-Factor 200.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Low water consumption
VERSATILITY
- Make to order: customisation.
- OPL < > COIN.
- Electric < > Hot water.
- Wet cleaning features.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø373.
- Easy opening/closing system for door lock
MAINTENANCE
- Hinged control panel: easy and ergonomic access.
- Equivalent parts for all models: contactors, electronic devices,...
- Technical menu: statistics for technicians and maintenance with external console (with console option).
OTHERS
- Hard mounted washers.
- Anchoring to floor with anchoring base.
- Panels in skinplate.
- Drum and tub in stainless steel AISI 304
- 3 water inlets.
- CB and WRAS approved product Option ETL.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- SLUICE: model with 8mm drum holes.
- Anchoring base.
- External double drain 3”.
- Normally closed valve.
- Water FULL FLOW: recirculation of bath water.
- Relay card with 6 extra dosing signals: up to 14 signals.
- Silicone gasket.
- Reversible door opening.
- Tropicalized model: protected board.
- Steam kit to transform an E or HW heated machine into steam version.
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 front panel.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
- Coin / token kit.
- Auto unlock kit for the door.
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis…thanks to the IoT.
- Videos on display (ads, instructions, etc.).
- 37 languages.
- 8 dosing signals as standard8 dosing.
G FACTOR
- High G-Factor 200.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Low water consumption
VERSATILITY
- Make to order: customisation.
- OPL < > COIN.
- Electric < > Hot water.
- Wet cleaning features.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø460.
- Easy opening/closing system for door lock
MAINTENANCE
- Hinged control panel: easy and ergonomic access.
- Equivalent parts for all models: contactors, electronic devices,...
- Technical menu: statistics for technicians and maintenance with external console (with console option).
OTHERS
- Hard mounted washers.
- Anchoring to floor with anchoring base.
- Panels in skinplate.
- Drum and tub in stainless steel AISI 304
- 3 water inlets.
- CB and WRAS approved product Option ETL.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- SLUICE: model with 8mm drum holes.
- Anchoring base.
- Normally closed valve.
- Water RE-CYCLE: recirculation of bath water
- Relay card with 6 extra dosing signals: up to 14 signals.
- Silicone gasket.
- Reversible door opening.
- Tropicalized model: protected board.
- Steam kit to transform an E or HW heated machine into steam version.
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 front panel.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
- Coin / token kit.
- Auto unlock kit for the door.
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis…thanks to the IoT.
- Videos on display (ads, instructions, etc.).
- 37 languages.
- 8 dosing signals as standard8 dosing.
G FACTOR
- High G-Factor 200.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Low water consumption
VERSATILITY
- Make to order: customisation.
- OPL < > COIN.
- Electric < > Hot water.
- Wet cleaning features.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø460.
- Easy opening/closing system for door lock
MAINTENANCE
- Hinged control panel: easy and ergonomic access.
- Equivalent parts for all models: contactors, electronic devices,...
- Technical menu: statistics for technicians and maintenance with external console (with console option).
OTHERS
- Hard mounted washers.
- Anchoring to floor with anchoring base.
- Panels in skinplate.
- Drum and tub in stainless steel AISI 304
- 3 water inlets.
- CB and WRAS approved product Option ETL.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- SLUICE: model with 8mm drum holes.
- Anchoring base.
- Normally closed valve.
- Water RE-CYCLE: recirculation of bath water
- Relay card with 6 extra dosing signals: up to 14 signals.
- Silicone gasket.
- Reversible door opening.
- Tropicalized model: protected board.
- Steam kit to transform an E or HW heated machine into steam version.
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 front panel.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
- Coin / token kit.
- Auto unlock kit for the door.
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis…thanks to the IoT.
- Videos on display (ads, instructions, etc.).
- 37 languages.
- 8 dosing signals as standard8 dosing.
G FACTOR
- High G-Factor 200.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS.
- Low water consumption
VERSATILITY
- Make to order: customisation.
- OPL < > COIN.
- Electric < > Hot water.
- Wet cleaning features.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø560 (for LN35C/45C).
- Easy opening/closing system for door lock
MAINTENANCE
- Hinged control panel: easy and ergonomic access.
- Equivalent parts for all models: contactors, electronic devices,...
- Technical menu: statistics for technicians and maintenance with external console (with console option).
OTHERS
- Hard mounted washers.
- Anchoring to floor with anchoring base.
- Panels in skinplate.
- Drum and tub in stainless steel AISI 304
- 3 water inlets.
- CB and WRAS approved product Option ETL.
OPTIONS
- Double drain.
- Normally closed valve.
- Silicon gasket (for LN-35).
- WaterFULL FLOW recirculation of bath water.
- Relay card with 6 extra dosing signals: up to 14 signals.
- Printer.
- Reversible door opening.
- Tropicalized model: protected board.
- Steam kit to transform an E or HW heated machine into steam version.
- Stainless steel outer casing.
- Stainless steel front panel.
- SLUICE: model with 8mm drum holes (for LN-35C/45C).
- Anchoring base.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
- Coin / token kit.
- Delayed door opening in case of power outage.
TP2
- User friendly and totally programmable 7”.
- USB Connection. Online platform free of charge for programming, telemetry, data analysis…thanks to the IoT.
- Videos on display (ads, instructions, etc.).
- 37 languages.
- 8 dosing signals as standard8 dosing.
G FACTOR
- High G-Factor 150.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Low water consumption
VERSATILITY
- Make to order: customisation.
- OPL < > COIN.
- Electric < > Hot water.
- Wet cleaning features.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical service.
- Managemant of laundries: OPL and COIN.
- Remote payment.
ERGONOMICS
- Biggest door diameters: Ø560.
- Easy opening/closing system for door lock
MAINTENANCE
- Hinged control panel: easy and ergonomic access.
- Equivalent parts for all models: contactors, electronic devices,...
- Technical menu: statistics for technicians and maintenance with external console (with console option).
OTHERS
- Hard mounted washers.
- Anchoring to floor with anchoring base.
- Panels in skinplate.
- Drum and tub in stainless steel AISI 304
- 3 water inlets.
- CB and WRAS approved product Option ETL.
OPTIONS
- DQ-2 Dosing pump kit.
- Extra dosing pump DB-1.
- SLUICE: model with 8mm drum holes.
- Anchoring base.
- Double drain.
- Normally closed valve.
- Water inlet hose.
- Relay card with 6 extra dosing signals: up to 14 signals.
- Reversible door opening.
- Tropicalized model: protected board.
- Steam kit to transform an E or HW heated machine into steam version.
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 front panel.
- Maritime voltage for electric models: 440V III 50/60 Hz No neutral.
- Coin / token kit.
- Auto unlock kit for the door.
- Stainless steel AISI 304 outer casing.
- Front soap dispenser.
As your authorized Fagor Professional distributor, we don't just sell machines; we provide the engineering expertise to optimize your laundry room. From sizing the correct KRS recovery tanks to setting up your FagorKonnect remote management, our team ensures your washing line is a model of modern efficiency.
Advanced Efficiency & Sustainability
Fagor Professional leads the industry in resource management. Through Advanced Laundry Systems, you can implement these eco-friendly technologies:
KRS (Kare Recovery System): A revolutionary water recovery system that allows for up to 70% savings in water consumption. By reclaiming and reusing water from previous cycles, your business reduces environmental impact and significantly cuts utility costs.
Intelligent Weighing & Consumption: Fagor washers automatically detect the load size and calibrate water and detergent intake accordingly. This "Smart Consumption" ensures that even half-loads are handled with maximum efficiency.
Wet Cleaning Ready: Every KARE washer comes pre-configured for Wet Cleaning programs. This allows you to process delicate garments—traditionally reserved for dry cleaning—using water and biodegradable soaps, expanding your service offerings safely.
Intelligent Control & Connectivity
Put the power of Fagor technology in your hands with a user-friendly digital experience.
Touch Plus Control (TP2): A 7-inch fully programmable touch screen with 37 available languages. It is the most intuitive interface in the industry, allowing for easy cycle customization, video playback (for ads or instructions), and program transfers via USB.
IoT & FagorKonnect: Manage your entire laundry facility from your pocket. Monitor machine telemetry, check performance statistics, and receive maintenance alerts in real-time, ensuring zero downtime and complete control over your OPL or Self-Service operation.
Ergonomics & Maintenance
Largest Door Openings: Fagor Professional washers feature the widest doors on the market, facilitating easy loading and unloading of bulky items like duvets and uniforms.
Hinged Control Panels: Designed for the technician in mind, the easy-access front panels allow for rapid maintenance and troubleshooting, reducing service costs and extending the life of your equipment.
Are you interested in this equipment?
Contact us for more information about this or other products.
Sanitary Barrier Washers
Power, control, and total decontamination
Industrial Sanitary Barrier Washers LMED range
TP2
- 7” touch screen easy to use and fully programmable, display on dirty side.
- Connection USB. Free software online for programming, telemetry, data analysis...
- Videos on display (instructions...)
- 37 languages.
- 8 dosing signals as standard.
OUTSTANDING FEATURES
- Automatic positioning of drum.
- 2 water inlets.
- Wet cleaning features ready.
- G-FACTOR 350.
- Telemetry as standard.
- Heating: electric, steam, and dual heating model (electric+steam).
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS
- Low water consumption.
- High G-FACTOR: reduced residual moisture > reduced drying time.
CONNECTIVITY
- IoT FagorKonnect.
- Remote technical service.
- Laundry management.
ERGONOMICS
- Huge door opening making loading/ unloading easier.
- Easy friendly drum opening by push button.
- Loading height: door base 670 mm.
MAINTENANCE
- Electric components on the left side, mechanical components on the right side and connections on the top (protected from water and detergents).
- Central drain as standard.
- Technical menu: statistics, alarms, autotest, data recovery for technicians and manteinance.
OTHERS
- 2 opposed doors. Pass-through barrier washer.
- Ready to be connected to dosing pumps.
- Grey skinplate outer casing.
- Drum and vat in stainless steel AISI 304.
- Frequency inverter to control imbalance.
- Electric, steam or dual heating.
- CE approved product.
- 1-door opening (single side operation).
- 7’’ second screen on clean side.
- Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Third water inlet.
- Double drain.
- Titration valve.
- Side drain valve.
- Low steam pressure (0,5 bar).
- Detergent box with 4 compartments.
- Electric drum motor brake.
- UPS Option (in case of power failure).
- End of cycle light alarm.
- Plinth to align loading height (door base at 850mm).
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 sanitary frame.
- Other voltages.
Industrial Sanitary Barrier Washers LBS range
| Sanitary Barriers (LBS Series) | LBS-27 TP2 |
LBS-35 TP2 |
LBS-50 TP2 |
LBS-70 TP2 |
|---|---|---|---|---|
| Load Capacity (kg) | 27 kg | 35 kg | 49 kg | 67 kg |
| G-Factor Performance | 375 G | 375 G | 375 G | 375 G |
| Drum Volume (dm³) | 268 | 347 | 486 | 665 |
| Control Display | Dual 7" Touch Plus 2 (TP2) Screens | |||
| Max. Spin Speed (RPM) | 920 | 920 | 920 | 920 |
| Heating Power (kW) | 18 - 27 kW | 27 - 36 kW | 36 - 54 kW | 45 - 54 kW |
| Dimensions (W x D) | 1402 x 951 mm | 1402 x 1086 mm | 1402 x 1331 mm | 1402 x 1650 mm |
| Net Weight (kg) | 900 kg | 950 kg | 1030 kg | 1150 kg |
| Sanitary Barriers (LBS Series) | LBS-27 TP2 |
LBS-35 TP2 |
LBS-50 TP2 |
LBS-70 TP2 |
|---|---|---|---|---|
| Load Capacity (kg) | 27 kg | 35 kg | 49 kg | 67 kg |
| G-Factor Performance | 375 G | 375 G | 375 G | 375 G |
| Drum Volume (dm³) | 268 | 347 | 486 | 665 |
| Control Display | Dual 7" Touch Plus 2 (TP2) Screens | |||
| Max. Spin Speed (RPM) | 920 | 920 | 920 | 920 |
| Heating Power (kW) | 18 - 27 kW | 27 - 36 kW | 36 - 54 kW | 45 - 54 kW |
| Dimensions (W x D) | 1402 x 951 mm | 1402 x 1086 mm | 1402 x 1331 mm | 1402 x 1650 mm |
| Net Weight (kg) | 900 kg | 950 kg | 1030 kg | 1150 kg |
Read more about the characteristcs of each model
TP2
- 7” touch screen easy to use and fully programmable, double display.
- Connection USB. Free software online for programming, telemetry, data analysis...
- Videos on display (instructions...).
- 37 languages.
- 8 dosing signals as standard.
OUTSTANDING FEATURES
- Automatic positioning of drum with motor brake.
- 3 water inlets as standard.
- Wet cleaning features ready.
- G-FACTOR 375.
- Telemetry as standard.
- Heating: electric, steam, and new dual heating model (electric+steam).
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS.
- Low water consumption.
- High G-FACTOR: reduced residual moisture > reduced drying time.
CONNECTIVITY
- IoT FagorKonnect.
- Remote technical service.
- Laundry management.
ERGONOMICS
- Huge door opening making loading/ unloading easier.
- Easy friendly drum opening by push button.
- Loading height: door base 800 mm.

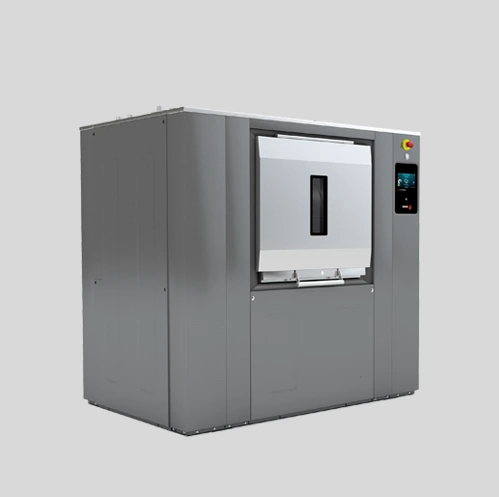

- Pullman drum: load optimisation (option).
MAINTENANCE
- Electric components on the left side, mechanic components on the right side and connections on the top (protected from water and detergents).
- Central drain as standard.
- Technical menu: statistics, alarms, autotest, data recovery for technicians and manteinance.
OTHERS
- 2 opposed doors. Pass-through barrier washer.
- Ready to be connected to dosing pumps.
- Grey skinplate outer casing.
- Drum and vat in stainless steel AISI 304.
- Frequency inverter to control imbalance.
- CE approved product.
- Third water inlet.
OTHERS
- 1-door opening (single side operation).
- Pullman drum.
- Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Double drain.
- Titration valve.
- Side drain valve.
- Low steam pressure (0,5 bar).
- Detergent box with 4 compartments.
- UPS device (in case of power failure).
- End of cycle light alarm.
- Plinth to align loading height (door base at 850mm).
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 sanitary frame.
- Other voltages.
TP2
- 7” touch screen easy to use and fully programmable, double display.
- Connection USB. Free software online for programming, telemetry, data analysis...
- Videos on display (instructions...).
- 37 languages.
- 8 dosing signals as standard.
OUTSTANDING FEATURES
- Automatic positioning of drum with motor brake.
- 3 water inlets as standard.
- Wet cleaning features ready.
- G-FACTOR 375.
- Telemetry as standard.
- Heating: electric, steam, and new dual heating model (electric+steam).
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS.
- Low water consumption.
- High G-FACTOR: reduced residual moisture > reduced drying time.
CONNECTIVITY
- IoT FagorKonnect.
- Remote technical service.
- Laundry management.
ERGONOMICS
- Huge door opening making loading/ unloading easier.
- Easy friendly drum opening by push button.
- Loading height: door base 800 mm.
- Pullman drum: load optimisation (option).
MAINTENANCE
- Electric components on the left side, mechanic components on the right side and connections on the top (protected from water and detergents).
- Central drain as standard.
- Technical menu: statistics, alarms, autotest, data recovery for technicians and manteinance.
OTHERS
- 2 opposed doors. Pass-through barrier washer.
- Ready to be connected to dosing pumps.
- Grey skinplate outer casing.
- Drum and vat in stainless steel AISI 304.
- Frequency inverter to control imbalance.
- CE approved product.
- Third water inlet.
OTHERS
- 1-door opening (single side operation).
- Pullman drum.
- Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Double drain.
- Titration valve.
- Side drain valve.
- Low steam pressure (0,5 bar).
- Detergent box with 4 compartments.
- UPS device (in case of power failure).
- End of cycle light alarm.
- Plinth to align loading height (door base at 850mm).
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 sanitary frame.
- Other voltages.
TP2
- 7” touch screen easy to use and fully programmable, double display.
- Connection USB. Free software online for programming, telemetry, data analysis...
- Videos on display (instructions...).
- 37 languages.
- 8 dosing signals as standard.
OUTSTANDING FEATURES
- Automatic positioning of drum with motor brake.
- 3 water inlets as standard.
- Wet cleaning features ready.
- G-FACTOR 375.
- Telemetry as standard.
- Heating: electric, steam, and new dual heating model (electric+steam).
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS.
- Low water consumption.
- High G-FACTOR: reduced residual moisture > reduced drying time.
CONNECTIVITY
- IoT FagorKonnect.
- Remote technical service.
- Laundry management.
ERGONOMICS
- Huge door opening making loading/ unloading easier.
- Easy friendly drum opening by push button.
- Loading height: door base 800 mm.
- Pullman drum: load optimisation (option).
MAINTENANCE
- Electric components on the left side, mechanic components on the right side and connections on the top (protected from water and detergents).
- Central drain as standard.
- Technical menu: statistics, alarms, autotest, data recovery for technicians and manteinance.
OTHERS
- 2 opposed doors. Pass-through barrier washer.
- Ready to be connected to dosing pumps.
- Grey skinplate outer casing.
- Drum and vat in stainless steel AISI 304.
- Frequency inverter to control imbalance.
- CE approved product.
- Third water inlet.
OTHERS
- 1-door opening (single side operation).
- Pullman drum.
- Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Double drain.
- Titration valve.
- Side drain valve.
- Low steam pressure (0,5 bar).
- Detergent box with 4 compartments.
- UPS device (in case of power failure).
- End of cycle light alarm.
- Plinth to align loading height (door base at 850mm).
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 sanitary frame.
- Other voltages.
TP2
- 7” touch screen easy to use and fully programmable, double display.
- Connection USB. Free software online for programming, telemetry, data analysis...
- Videos on display (instructions...).
- 37 languages.
- 8 dosing signals as standard.
OUTSTANDING FEATURES
- Automatic positioning of drum with motor brake.
- 3 water inlets as standard.
- Wet cleaning features ready.
- G-FACTOR 375.
- Telemetry as standard.
- Heating: electric, steam, and new dual heating model (electric+steam).
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS .
- Low water consumption.
- High G-FACTOR: reduced residual moisture > reduced drying time.
CONNECTIVITY
- IoT FagorKonnect.
- Remote technical service.
- Laundry management.
ERGONOMICS
- Huge door opening making loading/ unloading easier.
- Easy friendly drum opening by push button.
- Heigh of loading (door bottom): 800 mm.
MAINTENANCE
- Electric components on the left side, mechanic components on the right side and connections on the top (protected from water and detergents).
- Central drain as standard.
- Technical menu: statistics, alarms, autotest, data recovery for technicians and manteinance.
OTHERS
- 2 opposed doors. Pass-through barrier washer.
- Ready to be connected to dosing pumps.
- Grey skinplate outer casing.
- Drum and vat in stainless steel AISI 304.
- Frequency inverter to control imbalance.
- CE approved product.
- Third water inlet.
OTHERS
- 1-door opening (single side operation).
- Pullman drum.
- Auto Weight: automatic weighing sensor system on feet (Includes kit with 6 extra dosing signals).
- Relay card with 6 extra dosing signals: up to 14 signals.
- Double drain.
- Titration valve.
- Side drain valve.
- Low steam pressure (0,5 bar).
- Detergent box with 4 compartments.
- UPS device (in case of power failure).
- End of cycle light alarm.
- Plinth to align loading height (door base at 850mm).
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 sanitary frame.
- Other voltages.
Industrial Sanitary Barrier Washers Pullman range
TP2
- 7” touch screen easy to use and fully programmable, display on dirty side.
- Connection USB. Free software online for programming, telemetry, data analysis...
- Videos on display (instructions...)
- 37 languages.
- 8 dosing signals as standard.
OUTSTANDING FEATURES
- Automatic positionning of drum with motor brake.
- 3 water inlets, double drain.
- Wet cleaning features ready.
- G FACTOR 325.
- Telemetry as standard.
- Heating: electric, steam, and new dual heating model (electric+steam).
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Water Recovery tanks ready: KRS.
- High G factor : reduced residual moisture, reduced drying time.
CONNECTIVITY
- IoT FagorKonnect.
- Remote technical service.
- Laundry management.
ERGONOMICS
- Huge loading and unloading doors opening.
- Easy drum opening by push button.
- Loading height (960 mm from door bottom).
MAINTENANCE
- Electric elements on left side, mechanical ones on right side, connections on the top (protected from detergents and water splashes).
- Technical menu : statistics, alarms, autotest, data recovery for technicians and maintenance.
OTHERS
- 2 opposed doors. Pass-through barrier washer.
- Ready to be connected to dosing pumps.
- Grey skinplate outer casing.
- Drum and vat in stainless steel AISI 304.
- Frequency inverter to control imbalance.
- CE approved product.
- Relay card with 6 extra dosing signals: up to 14 signals.
- Dual heating (electric+steam).
- Titration valve.
- End of cycle light alarm.
- Detergent box with 4 compartments.
- Stainless steel AISI 304 outer casing.
- Stainless steel AISI 304 sanitary frame.
- Other voltages.
In high-risk environments, hygiene isn't just a requirement—it’s a safety mandate. As an authorized distributor, Advanced Laundry Systems provides Fagor Professional Sanitary Barrier Washers, the most reliable solution for preventing cross-contamination while maintaining peak operational efficiency.
Total Decontamination & RABC Compliance
Medical, pharmaceutical, and food-processing facilities must follow strict RABC (Risk Analysis and Biocontamination Control) standards. Fagor’s "Barrier" technology creates a physical wall between soiled and clean zones. By loading infectious linen on one side and unloading fully disinfected laundry on the other, you ensure that clean textiles never come into contact with contaminants.
Advanced Safety & High-Tech Control
Dual-Zone Monitoring: Every unit is equipped with the Touch Plus (TP2) Microprocessor. Our larger models feature dual 7-inch screens—one for the loading side and another for the clean zone—ensuring full traceability and control throughout the entire cycle.
Ergonomic Throughput: Fagor units boast the largest doors on the market and a push-button drum opening system, allowing your staff to process heavy volumes (from 16kg to 100kg) with less physical effort.
High G-Force Extraction: These washers don't just clean; they perform. High spin speeds reduce residual moisture, which speeds up drying times and lowers energy costs.
A Modern Solution for Vulnerable Sectors
Whether you manage a hospital, nursing home, laboratory, or pharmaceutical plant, your staff and residents depend on professional disinfection. Advanced Laundry Systems helps you select and install the right Fagor Barrier model to protect your team and ensure a germ-free environment.
Sustainability Meets Hygiene
With Fagor’s Smart Consumption technology, these machines automatically calibrate water and chemical usage based on the load weight. You get the highest level of disinfection while significantly reducing resource waste.
Are you interested in this equipment?
Contact us for more information about this or other products.
KRS Water Recovery System
Save water, energy, and chemicals, and recoup your investment
KRS Water Recovery System
| Water Recovery (KRS Series) | WREC-80 (T1/T2/T3) |
WREC-150 (T1/T2/T3) |
WREC-1000 |
|---|---|---|---|
| Tank Capacity | 80 Liters (per tank) | 150 Liters (per tank) | 1000 Liters |
| Washer Compatibility | LA/LN 11 to 18 kg | LA/LN 22 to 28 kg | LA/LN 35 to 120 kg |
| Barrier Compatibility | LBS-16 | LBS-22 | LBS-27 to 100 |
| Savings Performance | Up to 70% Water | Up to 70% Water | High Volume Recovery |
| Max. Tanks per Unit | Up to 3 (Stacked) | Up to 3 (Stacked) | Modular (1, 2, or 3) |
| Material | High-density Polyethylene | High-density Polyethylene | High-density Polyethylene |
| Control System | Integrated with TP2 Washers | PLC with Level Sensors | |
| Outer Panels | Grey Skinplate Panels | Grey Skinplate Panels | Frame Only (No panels) |
| Installation | Compact / Stackable | Compact / Stackable | Industrial / Floor Anchored |
| Water Recovery (KRS Series) | WREC-80 (T1/T2/T3) |
WREC-150 (T1/T2/T3) |
WREC-1000 |
|---|---|---|---|
| Tank Capacity | 80 Liters (per tank) | 150 Liters (per tank) | 1000 Liters |
| Washer Compatibility | LA/LN 11 to 18 kg | LA/LN 22 to 28 kg | LA/LN 35 to 120 kg |
| Barrier Compatibility | LBS-16 | LBS-22 | LBS-27 to 100 |
| Savings Performance | Up to 70% Water | Up to 70% Water | High Volume Recovery |
| Max. Tanks per Unit | Up to 3 (Stacked) | Up to 3 (Stacked) | Modular (1, 2, or 3) |
| Material | High-density Polyethylene | High-density Polyethylene | High-density Polyethylene |
| Control System | Integrated with TP2 Washers | PLC with Level Sensors | |
| Outer Panels | Grey Skinplate Panels | Grey Skinplate Panels | Frame Only (No panels) |
| Installation | Compact / Stackable | Compact / Stackable | Industrial / Floor Anchored |
Read more about the characteristcs of each model
CHARACTERISTICS
- 80 and 150 litre tanks to save the maximum amount of water in small spaces.
- Each washing machine or sanitary barrier can have between one and three tanks in column.
- Made of high density polyethylene and external reinforcement with skinplate panel structure, stainless steel aesthetics.
- Tank with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
EFFICIENCY
- Up to 70% water savings.
- Up to 40% energy saving.
- Savings in detergent.
EASY INSTALLATION & MAINTENANCE
- Plug and play.
- Requires little space.
- Self-cleaning tanks with pre-set programmes (with washers equipped with TP2 control).
- Removable tanks for easy cleaning and maintenance.
OTHERS
- 1, 2 or 3 tanks.
- Grey skinplate panels.
- High density polyethylene tanks.
- 2 water level sensors in each tank.
- 80l tanks for washing machines from 11 to 18 kg and sanitary barriers from 16 kg.
- 150l tanks for 22 to 28 kg washing machines and 22 kg sanitary barriers.
OPTIONS
- Sanitary barrier kit LMED-16 for connection of 3/4’ tanks WREC 1000. 3/4’ WREC 1000 tanks.
- Sanitary barrier kit LMED-22 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
- Washing machine kit LA/LN-11/14/18/22/28 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
CHARACTERISTICS
- 80 and 150 litre tanks to save the maximum amount of water in small spaces.
- Each washing machine or sanitary barrier can have between one and three tanks in column.
- Made of high density polyethylene and external reinforcement with skinplate panel structure, stainless steel aesthetics.
- Tank with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
EFFICIENCY
- Up to 70% water savings.
- Up to 40% energy saving.
- Savings in detergent.
EASY INSTALLATION & MAINTENANCE
- Plug and play.
- Requires little space.
- Self-cleaning tanks with pre-set programmes (with washers equipped with TP2 control).
- Removable tanks for easy cleaning and maintenance.
OTHERS
- 1, 2 or 3 tanks.
- Grey skinplate panels.
- High density polyethylene tanks.
- 2 water level sensors in each tank.
- 80l tanks for washing machines from 11 to 18 kg and sanitary barriers from 16 kg.
- 150l tanks for 22 to 28 kg washing machines and 22 kg sanitary barriers.
OPTIONS
- Sanitary barrier kit LMED-16 for connection of 3/4’ tanks WREC 1000. 3/4’ WREC 1000 tanks.
- Sanitary barrier kit LMED-22 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
- Washing machine kit LA/LN-11/14/18/22/28 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
CHARACTERISTICS
- 80 and 150 litre tanks to save the maximum amount of water in small spaces.
- Each washing machine or sanitary barrier can have between one and three tanks in column.
- Made of high density polyethylene and external reinforcement with skinplate panel structure, stainless steel aesthetics.
- Tank with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
EFFICIENCY
- Up to 70% water savings.
- Up to 40% energy saving.
- Savings in detergent.
EASY INSTALLATION & MAINTENANCE
- Plug and play.
- Requires little space.
- Self-cleaning tanks with pre-set programmes (with washers equipped with TP2 control).
- Removable tanks for easy cleaning and maintenance.
OTHERS
- 1, 2 or 3 tanks.
- Grey skinplate panels.
- High density polyethylene tanks.
- 2 water level sensors in each tank.
- 80l tanks for washing machines from 11 to 18 kg and sanitary barriers from 16 kg.
- 150l tanks for 22 to 28 kg washing machines and 22 kg sanitary barriers.
OPTIONS
- Sanitary barrier kit LMED-16 for connection of 3/4’ tanks WREC 1000. 3/4’ WREC 1000 tanks.
- Sanitary barrier kit LMED-22 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
- Washing machine kit LA/LN-11/14/18/22/28 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
CHARACTERISTICS
- 80 and 150 litre tanks to save the maximum amount of water in small spaces.
- Each washing machine or sanitary barrier can have between one and three tanks in column.
- Made of high density polyethylene and external reinforcement with skinplate panel structure, stainless steel aesthetics.
- Tank with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
EFFICIENCY
- Up to 70% water savings.
- Up to 40% energy saving.
- Savings in detergent.
EASY INSTALLATION & MAINTENANCE
- Plug and play.
- Requires little space.
- Self-cleaning tanks with pre-set programmes (with washers equipped with TP2 control).
- Removable tanks for easy cleaning and maintenance.
OTHERS
- 1, 2 or 3 tanks.
- Grey skinplate panels.
- High density polyethylene tanks.
- 2 water level sensors in each tank.
- 80l tanks for washing machines from 11 to 18 kg and sanitary barriers from 16 kg.
- 150l tanks for 22 to 28 kg washing machines and 22 kg sanitary barriers.
OPTIONS
- Sanitary barrier kit LMED-16 for connection of 3/4’ tanks WREC 1000. 3/4’ WREC 1000 tanks.
- Sanitary barrier kit LMED-22 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
- Washing machine kit LA/LN-11/14/18/22/28 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
CHARACTERISTICS
- 80 and 150 litre tanks to save the maximum amount of water in small spaces.
- Each washing machine or sanitary barrier can have between one and three tanks in column.
- Made of high density polyethylene and external reinforcement with skinplate panel structure, stainless steel aesthetics.
- Tank with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
EFFICIENCY
- Up to 70% water savings.
- Up to 40% energy saving.
- Savings in detergent.
EASY INSTALLATION & MAINTENANCE
- Plug and play.
- Requires little space.
- Self-cleaning tanks with pre-set programmes (with washers equipped with TP2 control).
- Removable tanks for easy cleaning and maintenance.
OTHERS
- 1, 2 or 3 tanks.
- Grey skinplate panels.
- High density polyethylene tanks.
- 2 water level sensors in each tank.
- 80l tanks for washing machines from 11 to 18 kg and sanitary barriers from 16 kg.
- 150l tanks for 22 to 28 kg washing machines and 22 kg sanitary barriers.
OPTIONS
- Sanitary barrier kit LMED-16 for connection of 3/4’ tanks WREC 1000. 3/4’ WREC 1000 tanks.
- Sanitary barrier kit LMED-22 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
- Washing machine kit LA/LN-11/14/18/22/28 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
CHARACTERISTICS
- 80 and 150 litre tanks to save the maximum amount of water in small spaces.
- Each washing machine or sanitary barrier can have between one and three tanks in column.
- Made of high density polyethylene and external reinforcement with skinplate panel structure, stainless steel aesthetics.
- Tank with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
EFFICIENCY
- Up to 70% water savings.
- Up to 40% energy saving.
- Savings in detergent.
EASY INSTALLATION & MAINTENANCE
- Plug and play.
- Requires little space.
- Self-cleaning tanks with pre-set programmes (with washers equipped with TP2 control).
- Removable tanks for easy cleaning and maintenance.
OTHERS
- 1, 2 or 3 tanks.
- Grey skinplate panels.
- High density polyethylene tanks.
- 2 water level sensors in each tank.
- 80l tanks for washing machines from 11 to 18 kg and sanitary barriers from 16 kg.
- 150l tanks for 22 to 28 kg washing machines and 22 kg sanitary barriers.
OPTIONS
- Sanitary barrier kit LMED-16 for connection of 3/4’ tanks WREC 1000. 3/4’ WREC 1000 tanks.
- Sanitary barrier kit LMED-22 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
- Washing machine kit LA/LN-11/14/18/22/28 for connection 3/4’ tanks WREC 1000. 3/4’ tanks WREC 1000.
CHARACTERISTICS
- 1,000 litre centralised tanks, from 1 to 3 tanks, for one or several machines from 35 to 120 kg.
- Large capacity models ideal for industrial laundries with large capacity washing machines.
- Combinable: Different WREC-1000 can be combined with different Domus machines with TOUCH II:
- 1 or more machines to the WREC-1000.
- 1, 2 or 3 WREC-1000 tanks.
- Resistant: Made of high density polyethylene and external reinforcement with galvanised steel structure.
EFFICIENCY
- Up to 70% water savings.
- Up to 40% energy saving.
- Savings in detergent.
EASY INSTALLATION & MAINTENANCE
- Easily connected with a 1’ valve.
- Self-cleaning programmes.
- Fixing: Incorporates holes for easy anchoring to the floor.
- Accessory kit available: For easy connection of washers and barriers with tanks (option).
- 2 water level sensors.
OTHERS
- 1, 2 or 3 tanks of 1000 litres each.
- One or more washing machines can be connected so that the wash water can be reused.
- Sold separately.
- No external panels, only the frame.
- Connections not included with the tank
OPTIONS
- 1’ connection kit from LBS-27/35/50/70/100 barriers to WREC-1000.
- 1’ connection kit from LA/LN-35C/45C/45C/60C/80C washers to WREC1000.
- 1’ connection kit from washing machines LA-100C/120C to WREC-1000.
- Raised platform.
- Mounting accessories kit.
Learn more about the Washers
A New Laundry Concept
At Advanced Laundry Systems, we believe a modern laundry must be both profitable and sustainable. As an authorized distributor, we provide the Fagor Professional KRS (Kare Recovery System)—the ultimate solution for 21st-century "Green Laundries." This system isn't just an add-on; it’s a smart investment that pays for itself by drastically cutting utility costs.
Eco-Power: Efficiency That Saves You Money
By connecting a KRS system to your Fagor industrial or barrier washers, you can unlock massive operational savings:
Up to 70% Water Savings: Drastically reduce your annual water consumption.
Chemical Recovery: Reuse water that already contains detergent, cutting your chemical costs.
Energy Efficiency: Reclaim hot water from previous cycles to reduce the energy needed for heating.
Smart & Versatile Design
The KRS system is engineered to fit seamlessly into your existing workflow:
Plug-and-Play Integration: Powered by TP2 Microprocessor technology, the connection between your washer and recovery tanks is simple and automated.
Scalable Solutions: We offer systems with 1, 2, or 3 tanks to match your specific production volume.
Easy Maintenance: The system features self-cleaning programs and removable tanks, ensuring your team saves time and avoids technical hassles.
Durable Build: Made from high-quality grey skinplate and controlled by precise filling valves for long-term industrial use.
Ideal for High-Volume Operations
Whether you manage a hospital, hotel, large residence, or correctional facility, the KRS system is the best way to optimize your resources. Advanced Laundry Systems is here to help you care for the planet while increasing your bottom line.
Are you interested in this equipment?
Contact us for more information about this or other products.
